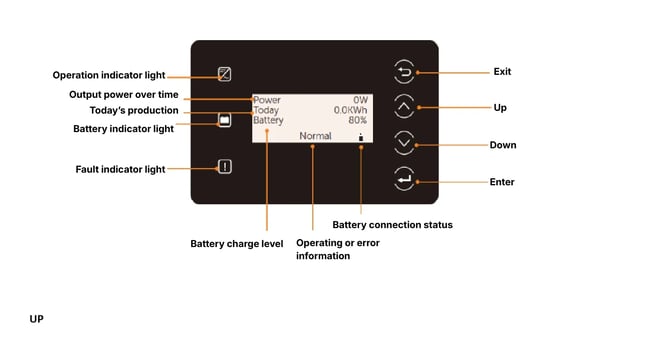

# Description of SolaX inverter switches and indicators

## The control buttons are designed for installer use only. All configuration settings are password-protected, and the password is provided exclusively to installers due to responsibility and warranty considerations.

### **![Body - inter](https://support.solar-kit.eu/hs-fs/hubfs/Body%20-%20inter.png?width=670&height=340&name=Body%20-%20inter.png)![solax\_inverter\_led\_2](https://support.solar-kit.eu/hs-fs/hubfs/solax_inverter_led_2.png?width=670&height=340&name=solax_inverter_led_2.png)**

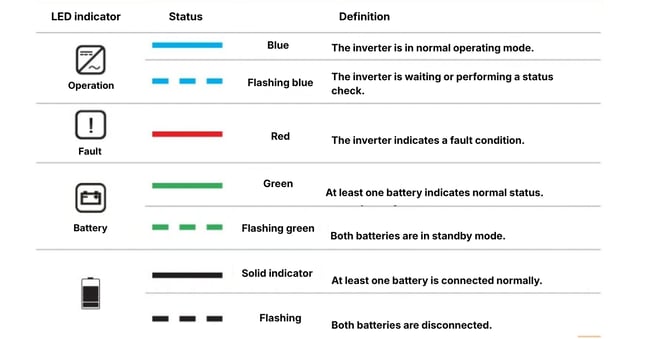

### **Operation**![](https://support.solar-kit.eu/hs-fs/hubfs/undefined-Oct-31-2025-02-59-22-6644-PM.png?width=93&height=73&name=undefined-Oct-31-2025-02-59-22-6644-PM.png)

- **Solid blue:** The inverter is operating normally.
- **Flashing blue:** The inverter is in standby or performing a status check.

### ![](https://support.solar-kit.eu/hs-fs/hubfs/undefined-Oct-31-2025-02-59-21-8508-PM.png?width=83&height=68&name=undefined-Oct-31-2025-02-59-21-8508-PM.png)**Fault**

- **Red:** The inverter indicates a fault.

### ![](https://support.solar-kit.eu/hs-fs/hubfs/undefined-Oct-31-2025-02-59-23-7221-PM.png?width=95&height=65&name=undefined-Oct-31-2025-02-59-23-7221-PM.png)**Battery**

- **Green:** At least one battery is operating normally.
- **Flashing green:** Both batteries are in idle mode.

### ![](https://support.solar-kit.eu/hs-fs/hubfs/undefined-Oct-31-2025-02-59-23-5147-PM.png?width=65&height=77&name=undefined-Oct-31-2025-02-59-23-5147-PM.png)**Battery Connection Status**

- **Solid indicator:** At least one battery is properly connected.
- **Flashing indicator:** Both batteries are disconnected.

**![solax\_indicators\_3\_eng](https://support.solar-kit.eu/hs-fs/hubfs/solax_indicators_3_eng.png?width=670&height=340&name=solax_indicators_3_eng.png)**

The **control buttons** are designed for **installer use only**. All configuration settings are **password-protected**, and the password is provided **exclusively to installers** due to responsibility and warranty considerations.

If the customer or another company modifies or reconfigures the system, **they automatically assume full responsibility** for its operation.

**Manufacturer contact for warranty claims:** 📧 **service.eu@solaxpower.com**



**SOLARKIT EUROPE fault reporting:**        ![](https://support.solar-kit.eu/hs-fs/hubfs/undefined-Oct-31-2025-02-59-23-1550-PM.png?width=166&height=166&name=undefined-Oct-31-2025-02-59-23-1550-PM.png)
